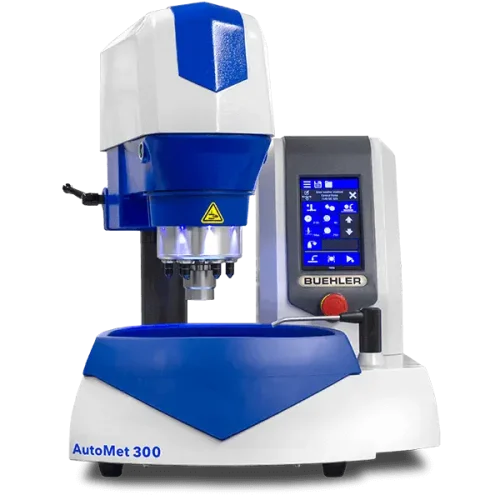

AutoMet 300 Pro
Semi-Automatic Grinder-Polisher
Our Brochure
The AutoMet 300 Pro Semi-Automatic Grinder-Polisher is a state-of-the-art grinding and polishing system designed for high-volume sample preparation and advanced metallographic analysis. Perfectly suited for demanding laboratories, this powerful and efficient machine delivers consistent, high-quality results while being easy to use. Compatible with 12-inch (305mm) platens, it is the ideal choice for precision grinding and polishing of samples up to 50mm in diameter.
Features of AutoMet 300 Pro Semi-Automatic Grinder-Polisher
- Optimized for High Volume and Large Samples
- Equipped with a robust 2hp (1.5kW) motor for processing high volumes and large sample sizes.
- Supports multiple sample holders, making it ideal for industrial-scale operations.
- Processes samples up to 50mm in diameter, ensuring versatility for a wide range of applications.
- Advanced Surface Quality and Consistency
- Features multi-step method storage for reproducible and accurate sample preparation.
- Z-axis material removal ensures precise and consistent grinding across all samples.
- Includes support for up to five automated Burst dispensing units, enabling precise polishing and freeing users for other tasks.
- User-Friendly Design for Maximum Efficiency
- An intuitive touchscreen interface simplifies operation, saving time and reducing training needs.
- Quick-load sample holders and compatibility with Apex S and Magnetic platen systems enable seamless consumable changes.
- The Rinse and Spin feature ensures fast and thorough cleaning of the polishing surface and bowl, maintaining a clean work environment.
Enquire Now
Applications of AutoMet 300 Pro
- EBSD Sample Preparation
- Delivers the flatness and surface finish required for high-resolution EBSD imaging.
- AFM Surface Preparation
- Prepares samples with the precision and consistency necessary for Atomic Force Microscopy.
- Material Science Research
- Ideal for laboratories conducting metallurgical and material studies requiring stress-free and highly polished surfaces.
- Quality Control and Assurance
- Ensures reliable sample preparation for consistent material testing and evaluation.
- Educational and Training Labs
- Perfect for teaching vibratory polishing techniques in research and academic settings.
- Microscopy and Imaging Applications
- Prepares samples for optical and electron microscopy, providing exceptional imaging clarity.
Specifications
| Features | Description |
|---|---|
| AutoMet 300 Pro | |
| Machine Power | 170-240VAC, 50/60Hz, 1 phase |
| Motor Power | 2Hp [750W] |
| Platen Diameter | 2in [305mm] |
| Platen Wheel Speed | 50-400rpm in 10rpm increments |
| Wheel Direction | Clockwise or Counter-Clockwise |
| Water Supply Hose | 0.25in [6mm] OD tube |
| Water Supply Pressure | 40-100psi [25-60bar] |
| Base Power Usage | 2.3kW, 10A @ 230VAC |
| Base & Head Power Usage | 3.6kW, 15A @ 230VAC |
| Membrane Control Panel for 300 Pro | Three 3-digit LED displays, 14 status LED’s; Units: Metric or Imperial |
| Touchscreen Control Panel for 300 Pro | Full color LCD Screen; 7in [175mm] diagonal; NEMA4 (IP65) water resistant |
| Base Sound Rating | (1.5ft, 0.5m) distance no load 51.5dB @ 100rpm |
| Base & Head Sound Rating | 64.5dB @ 100/60rpm |
| Weight | 219lbs [99kg] |
| Compliance | CE; EC applicable directives |
| Specifications: Power Head | |
| Machine Power | 0.75Hp [560W] |
| Speed | 50-150rpm in 10rpm increments |
| Central Specimen Force | 10-120 lbs [40-535N] |
| Single Specimen Force | 1-20 lbs [5-90N] |
| Central Force Specimen Capacity | 1in, 1.25in, 1.5in, 2in, 25mm, 30mm, 40mm, 50mm and large or irregular specimens |
| Single Force Specimen Capacity | 1in, 1.25in, 1.5in, 2in, 25mm, 30mm, 40mm, 50mm |
| Air Supply Hose | 0.25in [6mm] OD tube |
| Air Supply Pressure | 35psi [2.4bar] |
| Power Usage | 1.3kW, 5.65A @ 230VAC |
| Weight | 92 lbs [42kg] |
| Compliance | CE; EC applicable directives |
