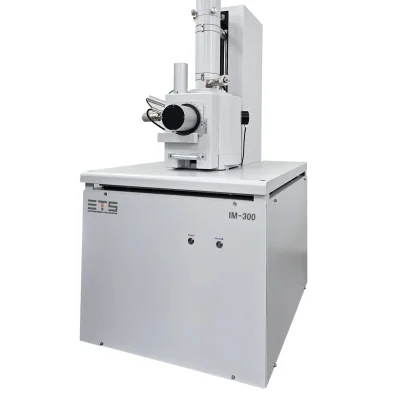

IM 300
The IM-300 Scanning Electron Microscope (SEM) is a high-performance imaging tool designed for advanced material analysis. With 3nm resolution at 30kV (SE Image), magnifications up to 300,000x, and versatile multi-mode detection (SE and BSE), the IM-300 delivers unmatched clarity and precision. It features a 5-axis motorized stage, high vacuum system, and advanced automation for efficient operation in material science, biology, and industrial applications.
Specifications of IM 300
| Feature | Details |
|---|---|
| Resolution | 3nm (30kV, SE Image) 5nm (30kV, BSE Image) |
| Magnification | 20x ~ 300,000x |
| Voltage | 1~30kV (1/5/10/15/20/30 - 6 Step) |
| Detector | Secondary Electron Image (SE) Backscattered Electron Image (BSE) *Multi Mode |
| Observation Mode | Standard Mode |
| Electron Gun | Pre-centered Tungsten/LaB6 Filament Cartridge |
| Lens System | Two-stage Electromagnetic Condenser Lens One-stage Electromagnetic Objective Lens |
| Stage System |
Stage Traverse: 5-axis Motor System (X, Y, R, T, Z) X, Y-axis: 40nm R-axis: 360º T-axis: 90º Z-axis: 0 ~ 35nm Beam Shift: Max.150µm |
| Max. Sample Size | 70nm (Diameter) x 30nm (Height) |
| Frame Memory |
High-Speed Mode (320 x 240): Preview Mode Low-Speed Mode (640 x 480) Photo Mode 1 (1280 x 960) Photo Mode 2 (2560 x 1920) Photo Mode 3 (5120 x 3840) |
| Data Display |
Magnification, Detector Type, Accelerating Voltage, Vacuum Mode, Logo (text), Date and Time, Micron Marker |
| Automation Functions | Auto Start, Auto Focus, Auto Stigmator, Auto Contrast & Brightness |
| Image Format | BMP, JPG, PNG, TIFF |
| Vacuum System |
Vacuum Mode: High Vacuum System (Low-Option, TMP: 300L/min) Vacuum Pump: Rotary Pump + Turbo Molecular Pump (Full Automation System) |
| Main Unit Dimensions | 700mm (W) x 850mm (D) x 1400mm (H) |
| Controller Unit Dimensions | 800mm (W) x 850mm (D) x 750mm (H) |
| Rotary Pump Dimensions | 400mm (W) x 160mm (D) x 340mm (H) |
| Installation Room Requirements |
Room Temperature: 15ºC ~ 30ºC Humidity: 70% or less Electric Power: Single phase 200 ~ 240 AC, 1KW, 50/60Hz |
