IsoMet low Speed
IsoMet Low Speed Gravity-fed Precision Sectioning Machine
Our Brochure

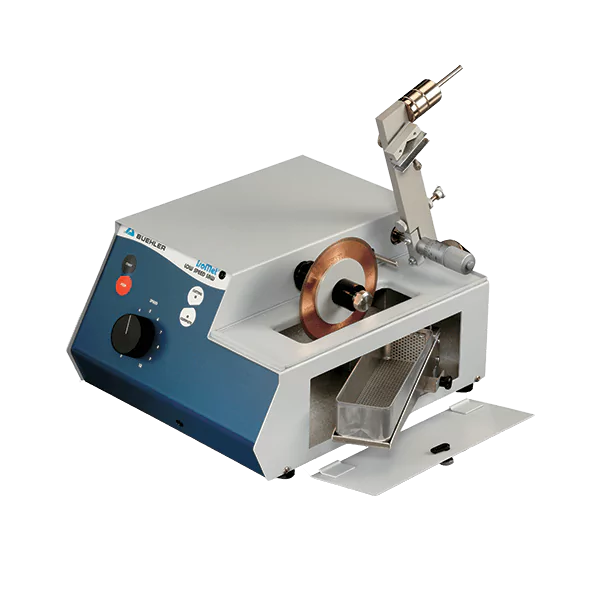

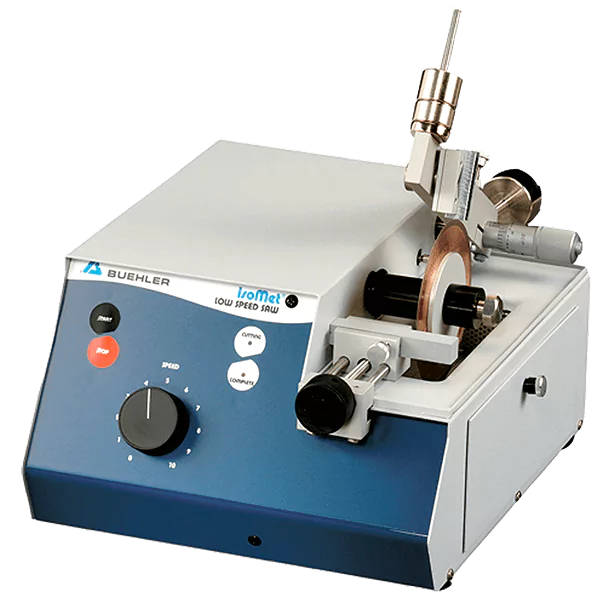

The IsoMet Low Speed precision cutter is a compact, gravity-fed saw designed for gentle, high-quality cuts in delicate samples. Its precision micrometer, user-friendly controls, and adjustable motor speed offer total control to the user. Ideal for high-precision sectioning, it can be paired with Buehler’s diamond / CBN blades and IsoCut coolant for optimal performance. Perfect for laboratories that demand the highest level of quality in sample preparation.
Key Features of IsoMet Low Speed
- Precision Cutting: Gravity-fed arm minimizes sample stress, ensuring delicate, accurate cuts.
- User Control: Precision micrometer guarantees accurate sample width adjustments.
- Adjustable Speed: Motor speed adjustable up to 300rpm to suit various materials.
- Versatile Cutting: Specially designed sample chucks for the smallest and most delicate samples.
- Convenient Maintenance: Removable catch tray for easy retrieval of cut samples.
Enquire Now
Applications of IsoMet Low Speed
- Metallography & Materials Science: Ideal for sectioning hard and soft materials while maintaining sample integrity.
- Research & Development (R&D): Crucial for testing and sample preparation in materials research, ensuring precise cuts for further analysis.
- Electronics & Microelectronics: Perfect for cutting small, delicate components like semiconductors and PCBs.
- Geology & Petrography: Excellent for creating thin sections of rocks, minerals, and other geological samples for detailed study.
Specifications
| Part Number | Voltage | Units |
|---|---|---|
| 11-1280-160 | 115VAC, 50/60Hz | Inches |
| 11-1280-170 | 115VAC, 50/60Hz | Millimeters |
| 11-1280-250 | 230VAC, 50/60Hz | Millimeters |
| Feature | Details |
|---|---|
| Frequency | Universal |
| Voltage | 115, 220 |
| Phase | 1 |
| Cutting Capacity | 1.50[in], 38.00[mm] |
| Wheel Diameter | 5.00[in] |
| Controls | Push Button |
| Cut Action | Gravity Fed Chop |
| Programmability | No |
| Serial Capabilities | No |
| Wheel Diameter | 127[mm] |
| RPM @60Hz | 300 |
