Upright microscope

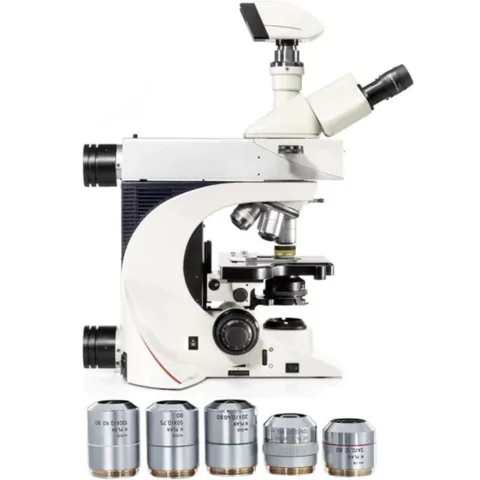

Leica DM2700 M Upright Materials Microscope
The Leica DM2700 M Microscope offers universal LED illumination, ergonomic operation, and precise optics for effortless materials analysis and quality control.
Our Brochure
Experience the versatility and precision of universal white light LED illumination. The Leica DM2700 M delivers constant color temperature at 4500º K, ensuring accurate and real-color imaging across various contrast methods such as brightfield, darkfield, interference contrast, polarized light, and oblique illumination.
With its energy-efficient and long-lasting LED system, you save on operational costs without compromising on performance.
Key Features Of Leica DM2700 M
1. Adaptable for Multiple Contrast Methods:
The Leica DM2700 M supports:
- Brightfield (BF)
- Darkfield (DF)
- Differential Interference Contrast (DIC)
- Polarized Light (POL)
- Fluorescence (FLUO)
It also includes built-in oblique illumination, enhancing visualization of surface topography and defects. Optional transmitted light capability expands its flexibility further.
2. Extensive Sample Compatibility:
Easily inspect a wide range of materials, including:
- Foils, wafers, and PCBs up to 100 x 100 mm
- Components up to 80 mm thick
3. Precision Objectives:
High-quality N PLAN achromatic objectives with magnifications from 5x to 100x deliver brilliance, sharp contrast, and high resolution. The 0.7x Macro objective offers a wide 40 mm field of view for fast orientation.
4. Ergonomic Design for Long Working Hours:
- Adjustable focus knobs and eyetubes for personalized comfort
- Three-gear focus system for fine, medium, and coarse adjustments
- Left- or right-handed operation compatibility
Enquire Now
Specifications Of Leica DM2700 M
| Feature | Details |
|---|---|
| Illumination | Universal LED illumination with a constant color temperature of 4500 K |
| Objective Magnifications | N PLAN achromatic objectives: 5x, 10x, 20x, 50x, 100x |
| Field of View | 22 mm |
| Working Distance | Large working distances for all objectives |
| Contrast Methods | Brightfield (BF), Darkfield (DF), Differential Interference Contrast (DIC), Polarization (POL), Fluorescence (FLUO) |
| Oblique Illumination | Built-in for enhanced surface topography visualization |
| Macro Objective | 0.7x Macro objective for quick sample overview (up to 40 mm) |
| Stage Size | Accommodates samples up to 100 x 100 mm and thickness up to 80 mm |
| Focus System | Two-gear or three-gear focusing system with adjustable knobs |
| Ergonomics | Adjustable eyetubes and height-adjustable focus knobs for user comfort |
| Color Coded Diaphragm Assistant (CCDA) | Integrated for ease of use in contrast adjustments |
Similar Products
Applications
1. Metallography and Materials Quality Control
Quickly detect surface defects or irregularities with high optical resolution and consistent color imaging, even during prolonged inspections.
2. Laboratory Analysis:
Enhance efficiency with an intuitive interface and ergonomic design, reducing operator fatigue and preventing errors.
3. Industrial Quality Control:
Rugged construction ensures reliable performance even in demanding industrial environments.
Advanced Ergonomics: Enhanced User Comfort
- Three-Gear Focus System: Easily switch between focus levels for precision work.
- Color-Coded Diaphragm Assistant (CCDA): Simplifies resolution, contrast, and depth-of-field adjustments, streamlining workflow and reducing errors.
- Adjustable Eyetubes and Focus Knobs: Promote proper posture and reduce strain for users during long microscopy sessions.
Why Choose the Leica DM2700 M?
- Unmatched Optical Performance: Achieve clear, precise imaging for advanced analysis.
- Versatility: Tailored for various industries, including forensic investigation, earth sciences, and electronics inspection.
- Durability: Engineered for long-term, reliable use in diverse environments.
- Ease of Use: Ergonomic and intuitive design ensures smooth operation for users of all levels.
