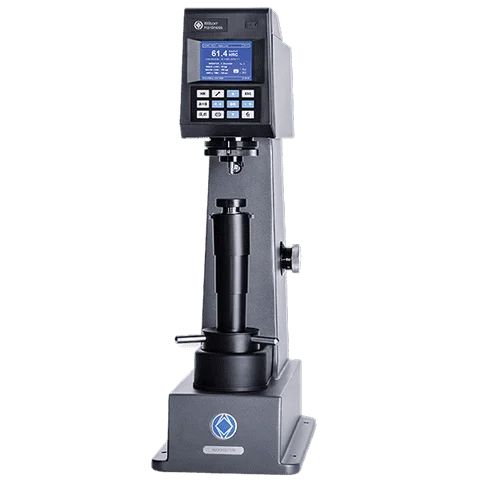

Wilson Rockwell 574 Hardness Tester
Industry Leading Gauge Repeatability and Reproducibility (GR&R)
Our Brochure
The Wilson Rockwell 574 Hardness Tester is an industry-leading solution for precise and reliable Rockwell hardness testing. This advanced testing instrument is engineered for regular and superficial Rockwell hardness scales, offering unmatched accuracy and repeatability. With its rugged industrial design and compliance with international standards, it is the preferred choice for manufacturers, researchers, and quality control professionals.
Key Features of Wilson Rockwell 574
- Comprehensive Testing Scales
Perform both regular (60, 100, 150 kgf) and superficial (15, 30, 45 kgf) Rockwell hardness tests, ensuring versatility for diverse materials and applications. - High Precision Measurements
Built with an advanced depth measurement system, this tester delivers consistent and highly accurate hardness readings for precise quality assessments. - User-Friendly Digital Interface
The intuitive LCD display streamlines the operation, offering real-time viewing of test results and simplified navigation for users of all experience levels.
Additional Features
- Efficient USB Data Transfer
Equipped with a USB port, the tester allows seamless data export to Microsoft Excel or other software, ensuring efficient reporting and analysis. - Rugged and Durable Design
Crafted for industrial use, the Wilson® Rockwell® 574 ensures long-lasting performance even in demanding manufacturing environments. - Compliance with ASTM and ISO Standards
Fully adheres to ASTM E18 and ISO 6508 regulations, ensuring reliable and standardized testing procedures.
Enquire Now
Applications of Rockwell 574 Hardness Tester
- Industrial Hardness Testing
Optimize material testing for metals and alloys in automotive, aerospace, and manufacturing industries. - Metallurgical Research
Perfect for laboratories conducting metallurgical and material science research to ensure the best material performance. - Quality Control and Assurance
Verify hardness levels in products to meet quality benchmarks, reducing defects and ensuring customer satisfaction. - Superficial and Regular Testing
Ideal for thin materials, coatings, and metals requiring both superficial and regular Rockwell testing capabilities.
Specifications
| Specification | Wilson Rockwell 574R Regular | Wilson Rockwell 574T Twin |
|---|---|---|
| Pre-load | 10kgf (98.07N) | 3, 10kgf (29.42, 98.07N) |
| Main-load | 60, 100, 150kgf (588.39, 980.67, 1471N) | 15, 30, 45, 60, 100, 150kgf (147.1, 294.19, 441.29, 588.39, 980.67, 1471N) |
| Hardness Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
| Test Load Type | Calibrated Spring (Minor Load), Dead weight stack (Major Load) | Calibrated Spring (Minor Load), Dead weight stack (Major Load) |
| Test Cycle Type | Motorized with automatic pre-load brake | Motorized with automatic pre-load brake |
| Vertical Test Capacity | 11.43in [289mm] (accessories may decrease available capacity) | 11.43in [289mm] (accessories may decrease available capacity) |
| Horizontal Test Capacity | 6.93in [175mm] at the top, 6.13in [155mm] at the bottom | 6.93in [175mm] at the top, 6.13in [155mm] at the bottom |
| Indenters (Optional) | 120º Diamond cone, 1/16in, 1/8in, 1/4in, 1/2in Ball | 120º Diamond cone, 1/16in, 1/8in, 1/4in, 1/2in Ball |
| Data-out | USB and RS232 | USB and RS232 |
| Standards Compliant | ASTM E18, ASTM D785, ASTM B294, ISO 6508, JIS Z 2245, GB/T 230 | ASTM E18, ASTM D785, ASTM B294, ISO 6508, JIS Z 2245, GB/T 230 |
| Power | 100 - 240VAC, 60/50Hz | 100 - 240VAC, 60/50Hz |
