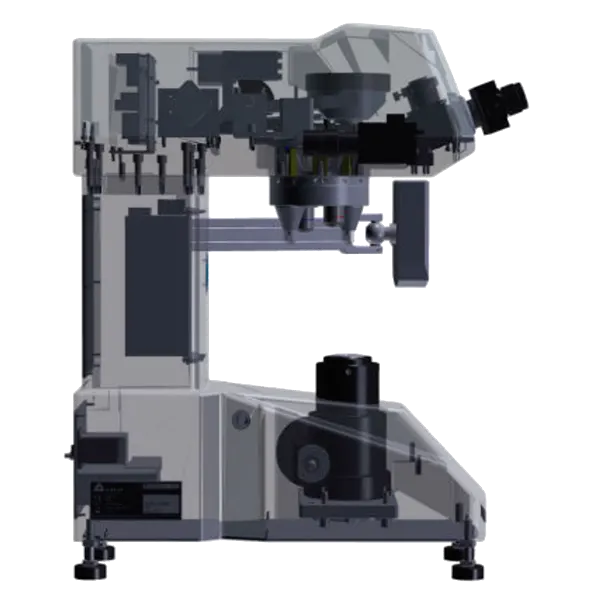

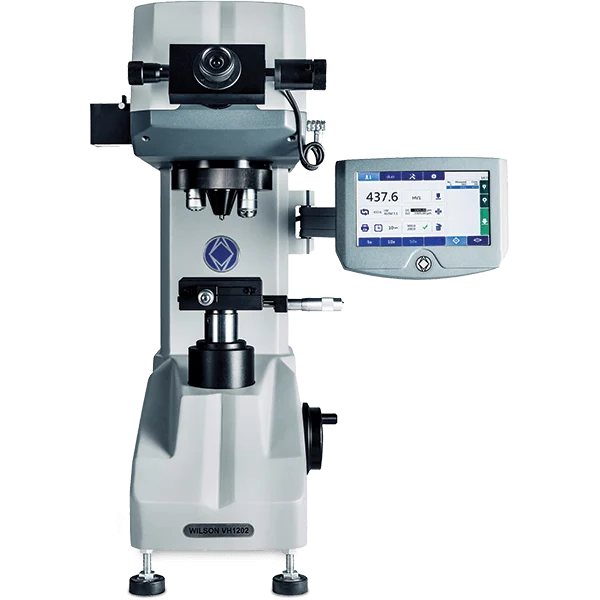

Wilson VH1102 and VH1202 Micro Hardness Testers
Micro Hardness Testers
Our Brochure
The Wilson Micro Hardness Testers offer unparalleled accuracy and versatility for Vickers hardness testing, Knoop hardness testing, and microhardness testing. Designed for precision and efficiency, these testers are equipped with advanced features, making them the ideal solution for quality control, metallurgical research, and laboratory applications. Available in models like the VH1102 Micro Hardness Tester and VH1202 Micro Hardness Tester, this series ensures reliable results and seamless operation.
Key Features of the Wilson Micro Hardness Testers
- Versatile Load Range (0.01–2 kgf): Accommodates a wide range of microhardness testing requirements, suitable for various materials and applications.
- Motorized Turret: The VH1102 features a four-position turret, while the VH1202 offers a six-position turret, allowing for multiple indenter and objective configurations to enhance testing flexibility.
- Automated Load Selection: Equipped with a durable motor that automatically adjusts test loads, replacing manual load selection and improving efficiency.
- High-Resolution Optical System: Includes high-quality objectives (10x and 50x for VH1102; 5x, 10x, and 50x for VH1202) providing clear imaging for accurate indent measurement.
- DiaMet™ Software Integration: Optional integration with DiaMet™ software allows for automated data analysis, measurement, and reporting, streamlining the testing process.
- Built-in Camera (Optional): An integrated camera protected against dirt and misalignment enables precise indent measurement and documentation.
- Compliance with International Standards: Conforms to ISO 6507 and ASTM E384 standards, ensuring reliable and standardized test results.
Enquire Now
Applications of Micro Hardness Tester
- Quality Control: Ensures materials meet specified hardness standards in industries such as aerospace, automotive, and electronics.
- Metallurgical Research: Provides detailed insights into material properties, aiding in the development of new materials and treatments.
- Laboratory Testing: Suitable for academic and industrial laboratories requiring accurate and repeatable microhardness measurements.
- Coating and Surface Testing: Ideal for analyzing thin coatings and surface treatments with high precision.
- Heat Treatment Analysis: Evaluates the effects of heat treatments on materials to ensure desired mechanical properties.
Specifications
| Specification | Wilson VH1102 | Wilson VH1202 |
|---|---|---|
| Hardness Scales | HV (Vickers), HK (Knoop) | HV (Vickers), HK (Knoop) |
| Turret | Motorized | Motorized |
| Indentors | 1 indenter position | 2 indenter position |
| Select Vickers or Knoop | 1 indenter position | Select Vickers and/or Knoop |
| Standard Objectives | 10x & 50x Regular | 5x, 10x & 50x Long Working Distance |
| Total Magnification | 100x, 500x | 50x, 100x, 500x |
| Test Loads | 0.01 - 0.025 - 0.05 - 0.1 - 0.2 - 0.3 - 0.5 - 1 - 2kgf | 0.01 - 0.025 - 0.05 - 0.1 - 0.2 - 0.3 - 0.5 - 1 - 2kgf |
| Test Load Accuracy | ±1.5% < 200g, ±1% > 200g | ±1.5% < 200g, ±1% > 200g |
| Test Cycle Type | Motorized Dead Weight | Motorized Dead Weight |
| Standard Compliance | ASTM E384 & E92; ISO 6507, 9385, 4546 | ASTM E384 & E92; ISO 6507, 9385, 4546 |
| Light Source | LED | LED |
| XY-Stage Options | Manual 100 x 100mm stage, 25 x 25mm travel | Motorized stage 100 x 100mm travel (with PC software only) |
| Data-out | USB and RS232 | USB and RS232 |
| Software Options | Options from basic camera kit to full automatic system available | Options from basic camera kit to full automatic system available |
| Operating Temperature | 50 - 100°F [10 - 38°C] | 50 - 100°F [10 - 38°C] |
| Humidity | 10 - 90% non-condensing | 10 - 90% non-condensing |
| Power | 100 - 240VAC, 50/60Hz | 100 - 240VAC, 50/60Hz |
Wilson VH1102 and 1202 Ordering
| Features | Description |
|---|---|
| VH1102 Stand Alone Tester (W1102D01) | |
| Hardness Scale | HV |
| Main Load Range | 0.01 - 2 kgf |
| Objectives | 10x and 50x Long Working Distance |
| Sample Support | Flat anvil (19mm pin) & Analog XY Stage |
| VH1202 Stand Alone Tester (W1202D01) | |
| Hardness Scale | HV & HK |
| Main Load Range | 0.01 - 2 kgf |
| Objectives | 5x, 10x and 50x Long Working Distance |
| Sample Support | Flat anvil (19mm pin) & Analog XY Stage |
| VH1102 Vickers with DiaMet® Automation Software | |
| W1102D31 | DiaMet Basic: Manual (Analog) |
| W1102D33 | DiaMet Basic: Manual (Digital) |
| W1102D35 | DiaMet Semi Auto |
| W1102D37 | DiaMet Full Auto |
| W1102D45 | DiaMet Enterprise |
| VH1202 Vickers and Knoop with DiaMet® Automation Software | |
| W1202D31 | DiaMet Basic: Manual (Analog) |
| W1202D33 | DiaMet Basic: Manual (Digital) |
| W1202D35 | DiaMet Semi Auto |
| W1202D37 | DiaMet Full Auto |
| W1202D45 | DiaMet Enterprise |
| Automation Options | |
| DiaMet Basic: Manual (Analog) | Camera only |
| DiaMet Basic: Manual (Digital) | Camera, Digital Stage Readout |
| DiaMet Semi-Auto | Camera, Motorized 100 x 100mm Stage |
| DiaMet Full Auto | Camera, Motorized 100 x 100mm Stage, Auto-Focus |
| DiaMet Enterprise | Camera, Motorized 100 x 100mm Stage, Auto-Focus |
