Wilson UH4000 Universal Hardness Tester
Automated Hardness Testing System
Our Brochure

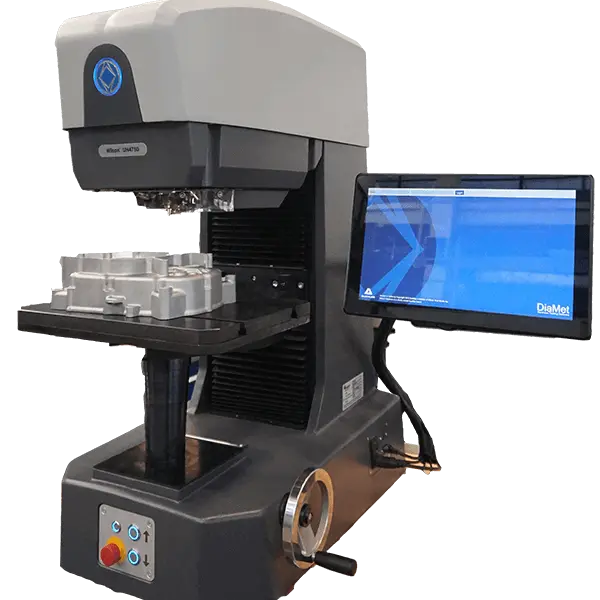

The Wilson UH4000 Universal Hardness Tester is an industry-leading solution designed for multi-scale hardness testing, providing unmatched precision and efficiency. This versatile tester supports Vickers, Rockwell, Brinell, and Knoop hardness scales, making it the perfect choice for high-volume hardness testing in industrial, laboratory, and research environments. Engineered with advanced technology and robust design, the UH4000 is compliant with global standards, ensuring accurate and reliable results.
Key Features of the Wilson UH4000 Universal Hardness Tester
- Multi-Scale Hardness Testing
Perform precise Rockwell, Brinell, Vickers, and Knoop hardness tests on a single machine, offering maximum versatility. - Automated Hardness Testing
Features automated functionality to streamline testing workflows and ensure consistent, repeatable results for high-volume production environments. - Wide Load Range
Supports test loads from 0.3 to 3000 kgf, enabling accurate testing across a variety of materials and applications. - Precision Hardness Measurement

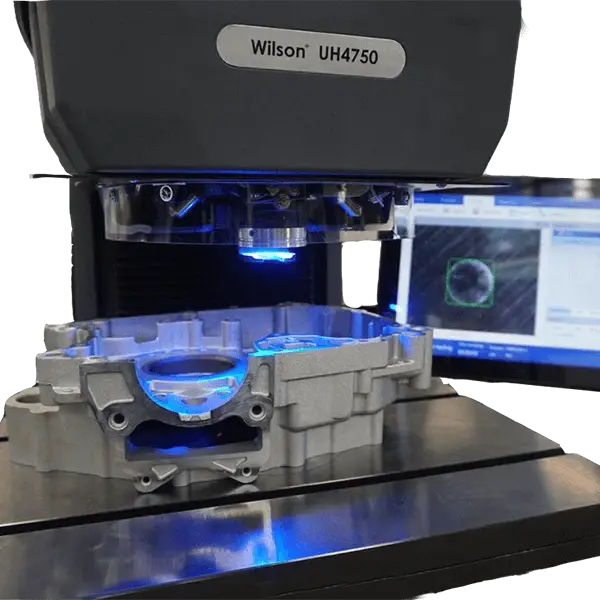

Equipped with advanced load cell technology and a robust optical system, delivering exceptional accuracy and repeatability. - User-Friendly Interface
The intuitive touch-screen interface simplifies test configuration and real-time monitoring, ensuring ease of use for operators. - ISO and ASTM Compliance
Fully compliant with ISO 6506, ISO 6508, ISO 6507, and ASTM E18 standards, ensuring standardized and reliable testing results. - Durable Industrial Design
Built with a rugged frame for long-term durability in demanding industrial environments, ensuring consistent performance over time. - Advanced Data Management
Integrated with DiaMet software, providing seamless data analysis, report generation, and connectivity for enhanced efficiency.
Enquire Now
Applications of the Wilson UH4000 Universal Hardness Tester
- Industrial Hardness Testing
Ideal for high-volume material testing in industries such as aerospace, automotive, and heavy manufacturing. - Material Quality Control
Ensures raw materials and finished products meet strict hardness and quality standards. - Research and Development
Enables precise testing and analysis for material innovation and development in laboratories. - Educational and Training Use
A versatile tool for teaching and demonstrating hardness testing techniques in academic institutions.
Specifications
| Specification | Wilson UH4250 | Wilson UH4750 |
|---|---|---|
| Hardness Scales | HV 0.5 - HB 10/250 | HV 3 - HBW 10/750 |
| Turret | 8 positions for objectives and indenters | |
| Indenters (Optional) |
Brinell 1mm, 2.5mm, 5.0mm and 10.0mm carbide balls, Rockwell diamond cone, 1/16", 1/8", ¼", ½" carbide ball indenters, Vickers diamond and Knoop diamond |
|
| Objectives Long Working Distance (Optional) | 0.5x (optional with ring light), 5x, 10x, 20x, 40x, 50x | |
| Optics | 5-megapixel USB 3 digital camera, with digital zoom and autofocus | |
| Test Loads | 0.5-250kgf | 3-750kgf |
| Test Load Type | Closed loop | |
| Test Standards |
Brinell (ISO 6506-1, ASTM E10), Vickers (ISO 6507-1, ASTM E92), Rockwell (ISO 6508-1, ASTM E18), Knoop (ISO4545-1, ASTM E384), Plastic testing ball indentation (ISO 2039-1, 2039-2) |
|
| Z Spindle | Manual hand wheel and automatic Z axis drive | |
| Maximum Specimen Height/Weight | 300 mm (11.8 in), 70 kg (154 lb) | 300 mm (11.8 in), 70 kg (154 lb) |
| Test Stage Dimensions | T-slot stage with 12mm slot width, 300mm [11.8in] x 400mm [15.7in] | |
| Machine Dimensions (L × W × H) | 704 mm (28 in) × 534 mm (21 in) × 995 mm (39.2 in) | 704 mm (28 in) × 534 mm (21 in) × 995 mm (39.2 in) |
| Machine Net Weight | 300kg (660lb) | 300kg (660lb) |
| Power | 100 - 240VAC, 50-60Hz | |
Wilson UH4000 Universal Hardness Tester Ordering
| Part Number | Description |
|---|---|
| W4250 | Load Range 0.5-250kgf, Standard Monitor 24" |
| W4251 | Load Range 0.5-250kgf, Touchscreen 19.5" |
| W4750 | Load Range 3 - 750kgf, Standard Monitor 24" |
| W4751 | Load Range 3 - 750kgf, Touchscreen 19.5" |

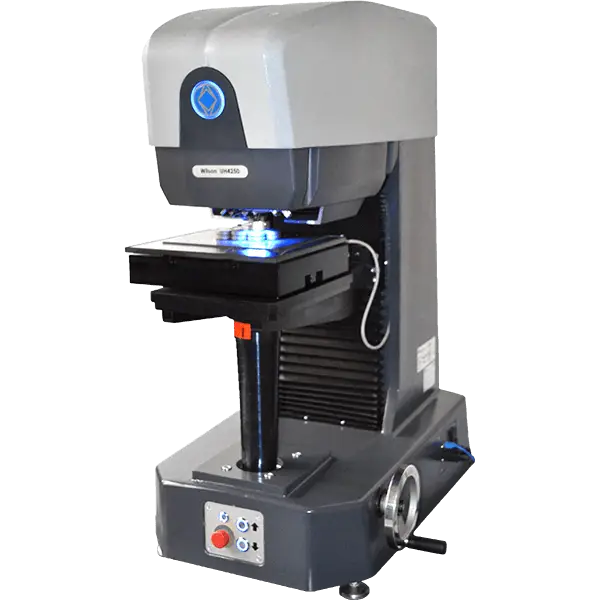

| W4250XY | Load Range 0.5-250kgf, 24" Standard Monitor, 180 x 180mm motorized stage |
| W4251XY | Load Range 0.5-250kgf, 19.5" Touchscreen, 180x180mm motorized stage |
| *Clamping device W4100CL not applicable | |
