Hardness Testing
Wilson VH3300
Automated Hardness Testing System
Our Brochure

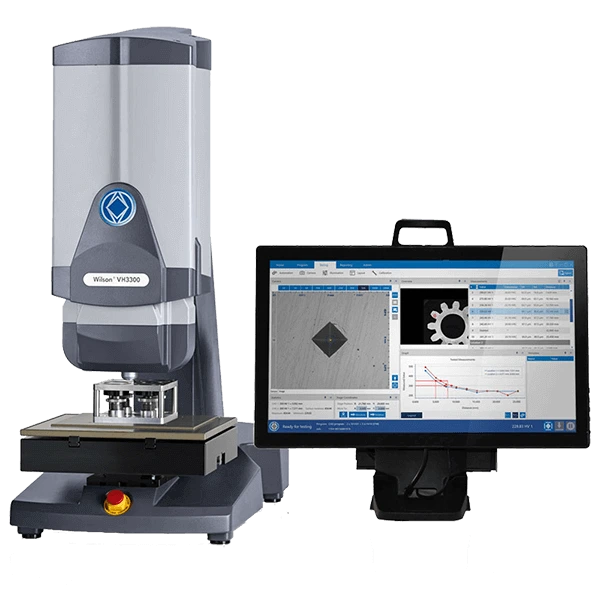

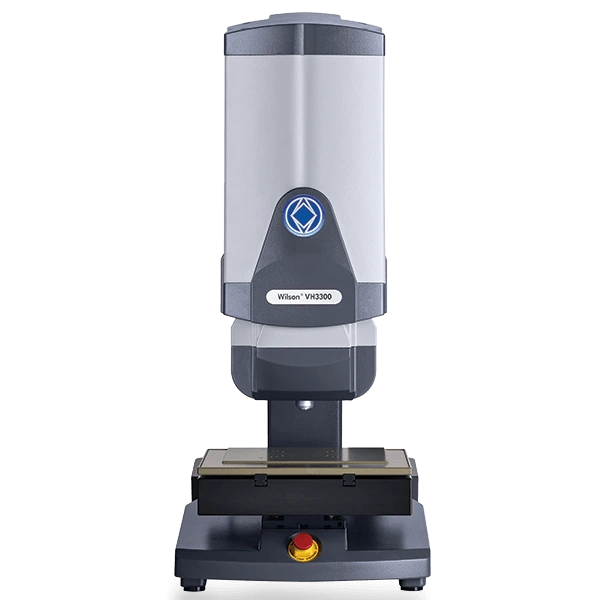

The Wilson VH3300 Automatic Hardness Tester is an advanced, user-friendly device for Vickers and Knoop hardness testing, offering high precision and reliability. This cutting-edge hardness testing equipment is ideal for both laboratory and industrial applications, delivering consistent results for a wide range of materials.
Key Features of the Wilson VH3300
Exceptional Accuracy: The VH3300 ensures precise and reliable hardness measurements, making it the perfect choice for precision hardness testing in research and production environments.
Versatile Dual Testing Methods: Effortlessly switch between Vickers and Knoop testing to accommodate various material testing requirements, enhancing operational flexibility.
Comprehensive Load Range: The tester’s wide load range, from 10gf to 50kgf, allows for both micro and macro hardness tests, making it suitable for small-scale and large-scale applications.
Innovative Design Features:
Motorized Turret: Holds up to three indenters and three objectives, enabling streamlined and efficient testing.
Collision-Resistant System: Protects key components from potential damage, ensuring durability and longevity.
Optional Overview Camera: Enhances imaging and precision by providing clear visuals for indent positioning.
Compliance with Global Standards: Fully adheres to ASTM and ISO requirements for seamless integration into global operations.
User-Friendly DiaMet™ Software: The intuitive DiaMet™ software simplifies the testing process with step-by-step guidance for test execution, data analysis, and reporting, suitable for users of all skill levels.
Optimized for Laboratory Use: Designed as a laboratory hardness tester, the VH3300 excels in academic, research, and industrial labs, ensuring repeatable and accurate results across diverse testing applications.
Enquire Now
Applications of VH3300
- Accurate testing of metals, alloys, coatings, and composite materials.
- Essential for quality control in industries such as automotive, aerospace, and manufacturing.
- Critical for research and development in academic institutions and industrial labs.
Specifications
| Specification | Details |
|---|---|
| Scales | HV, HK |
| Turret | Automatic 6 position incl. overview |
| Indenter Positions | Up to 3 (select) |
| Test Load (select) |
|
| Test Load Accuracy | ±1.5% < 200g, ±1% > 200g |
| Force Application | Load Cell |
| Dwell Time | 1 - 999 seconds |
| Standard Compliance | ASTM E384, E92; ISO 6507, 9385, 4545 |
| Magnification Range | 30X - 2000X with digital zooming |
| Overview Camera (optional) | 0.25 x 0.25in [6 x 6 mm] |
| Light Source | LED |
Wilson VH3300 Series Vickers-Knoop Hardness Tester
Customizable Configuration with Motorized Stage, Vertical Test Capacity, Optics, and Load Cell Options
| Part # | Description |
|---|---|
| Main Unit | |
| W3210 | 3 objectives + 3 load cells, 0.010 - 50kgf load range*, Includes DiaMet workstation and 24" monitor |
| Software Options | |
| W3100A03 | DiaMet Full-Automatic software package |
| W3100A15 | DiaMet Enterprise software package |
| Motorized Stages | |
| W3000SS | Standard Size (180 x 180mm) |
| W3000SL | Large Size (300 x 180mm) |
| Vertical Test Capacity | |
| W3200D01 | Height - 105mm |
| W3200D02 | Height - 155mm |
| Load Cell | |
| W3210E01 | 10N loadcell |
| W3200E02 | 100N loadcell |
| W3200E04 | 500N loadcell |
| Overview Camera | |
| W3200F01 | Turret integrated camera for VH3300 - Includes Scan & Stitch function in the DiaMet software |
| Additional Accessories | |
| W3100G01 | Indenter Holder (Standard) |
| W3100G02 | SnapGrip Holder |
| W9100687 | Vickers Indenter (ISO & ASTM Certified) |
| Objectives | |
| W5XLWDO | 5x Magnification, 3600μm Max. Field of View |
| W10XLWD | 10x Magnification, 1800μm Max. Field of View |
| W20XLWD | 20x Magnification, 900μm Max. Field of View |
| W40XLWD | 40x Magnification, 450μm Max. Field of View |
| W50XLWD | 50x Magnification, 360μm Max. Field of View |
| W100XLWD | 100x Magnification, 180μm Max. Field of View |
