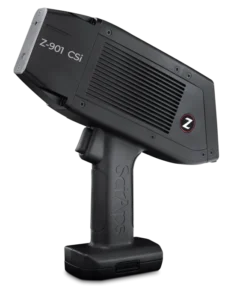

Z-901 Analyzer
The SciAps Z-901 Handheld LIBS Analyzer is a versatile, lightweight instrument designed for rapid, in-field elemental analysis across various applications. Its advanced Laser-Induced Breakdown Spectroscopy (LIBS) technology enables precise measurements, making it an essential tool for professionals in industries such as metallurgy, mining, and environmental science.
Key Features of Z-901 Analyzer
1. Advanced Spectrometer Technology
Single Spectrometer Configuration: Covers a wavelength range of 200 – 440 nm, allowing detection of a broad spectrum of elements.
2. Ergonomic and Lightweight Design
Reduced Weight: Weighs approximately 3.5 lbs (1.6 kg) with battery, enhancing portability for field operations.
Improved Heat Dissipation: Engineered for better thermal management, ensuring consistent performance in various environments.
3. User-Friendly Interface
Android Operating System: Provides an intuitive, app-based interface for streamlined operation.
High-Brightness Touchscreen: Features a 2.7-inch color touchscreen, readable in all lighting conditions, facilitating easy data viewing and navigation.
4. Versatile Analytical Capabilities
Factory Calibrations: Pre-configured to analyze 15-20 elements across various applications, including alloy analysis and environmental assessments.
Customizable Profiles: Utilizes Profile Builder software for user-defined calibrations, accommodating specific analytical requirements.
Enquire Now
Applications of Z-901 Analyzer
Mining and Geochemistry: Offers ultra-low detection limits for light elements and precise measurements of heavy elements, aiding in mineral exploration and geochemical studies.
Environmental Analysis: Provides superior limits of detection for elements like cadmium, silver, tin, antimony, and barium, supporting environmental monitoring and compliance efforts.
Regulatory Compliance: Facilitates compliance testing for regulations such as RoHS, Halogen Free, CPSIA, and lead paint in children’s playgrounds, with state-of-the-art data management incorporated into a flexible Android system.
Similar Products
Specifications of Z-901 Analyzer
| Feature | Details |
|---|---|
| Weight | 2.98 lbs. (1.35 kg) with battery |
| Dimensions | 8.5 x 9.5 x 2.4 inches |
| Excitation Source | 5 W X-ray tube, Max 55 kV, 200 µA, Au anode |
| Detector | 20 mm² silicon drift detector (active area), 140 eV resolution FWHM at 5.95 Mn K-alpha line |
| X-Ray Filtering | Six position filter wheel |
| Display | 2.7-inch high-brightness color capacitive touchscreen, readable in all conditions |
| Processing Electronics | 1.2 GHz Quad ARM Cortex A53 64/32-bit, RAM 2 GB LP-DDR3, Storage: 16 GB eMMC |
| Power | On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power, hot-swap capability (60s max swap time) |
